GM Transfer Case Front Output Shaft Snap Ring | 1998 - 2007

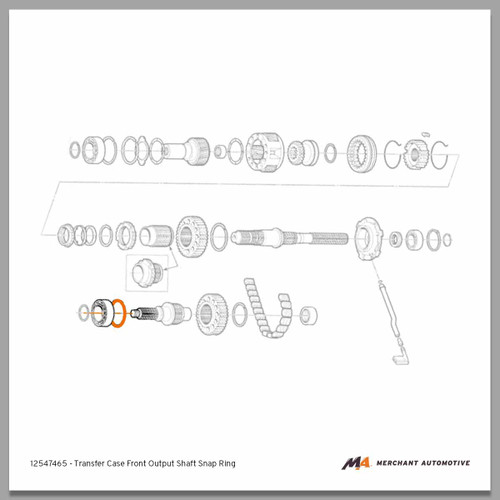

This snap ring is the front output shaft snap ring that is located directly behind the output shaft seal inside the transfer case housing.

Click here to view the Merchant Automotive Transfer Case Pump Upgrade kit.

Click here to view transfer case pump upgrade installation instructions.

Click here to view the Truck U segment on the Merchant Automotive Transfer Case Pump Upgrade.

FAQ:

I hear a grinding noise at low speed after reassembling my transfer case. What could that be?

A low speed grinding noise is most commonly caused by the rear output bearing snap ring not being fully seated causing the bearing to move out of proper alignment. Verify that the snap ring is fully engaged and properly seated in the rear housing and the locating groove in the bearing.

What would cause a speed sensor correlation code after installing the pump upgrade?

A speed sensor correlation code is often accompanied by a low speed grinding noise and is frequently caused by the rear output bearing snap ring not being fully seated causing the bearing to move out of proper alignment. Verify that the snap ring it fully engaged and properly seated in the rear housing and the locating groove in the bearing.
